Surface Series

INTRODUCTION

The AMI-Surface DX Series offers a fully automated solution for BET surface area analysis using dynamic flow adsorption. Designed for high-throughput labs, it features four parallel analysis stations, enabling simultaneous testing and significantly reducing turnaround times.
Operating without a vacuum system, the AMI-Surface DX uses a dynamic flow (non-static) method that supports both single-point and multi-point BET analysis. This makes it ideal for quality control, R&D, and production environments, especially for low surface area materials. With reference comparison methods, adsorption peaks are detected rapidly and accurately—delivering precise results with exceptional speed.

Patent of Invention
Accurate adsorption measurements based on sharp peak detection eliminate errors caused by incomplete desorption. Ideal for low surface area samples such as ternary materials and battery electrode materials. (Patent No. 20140320453.2)
Automatic Nitrogen Partial Pressure Control
Surface DX 400 is equipped with high-precision mass flow controllers to automatically regulate nitrogen partial pressure during BET surface area measurements. This ensures stable and accurate gas flow across the sample surface, delivering consistent and reliable adsorption results with minimal manual intervention.

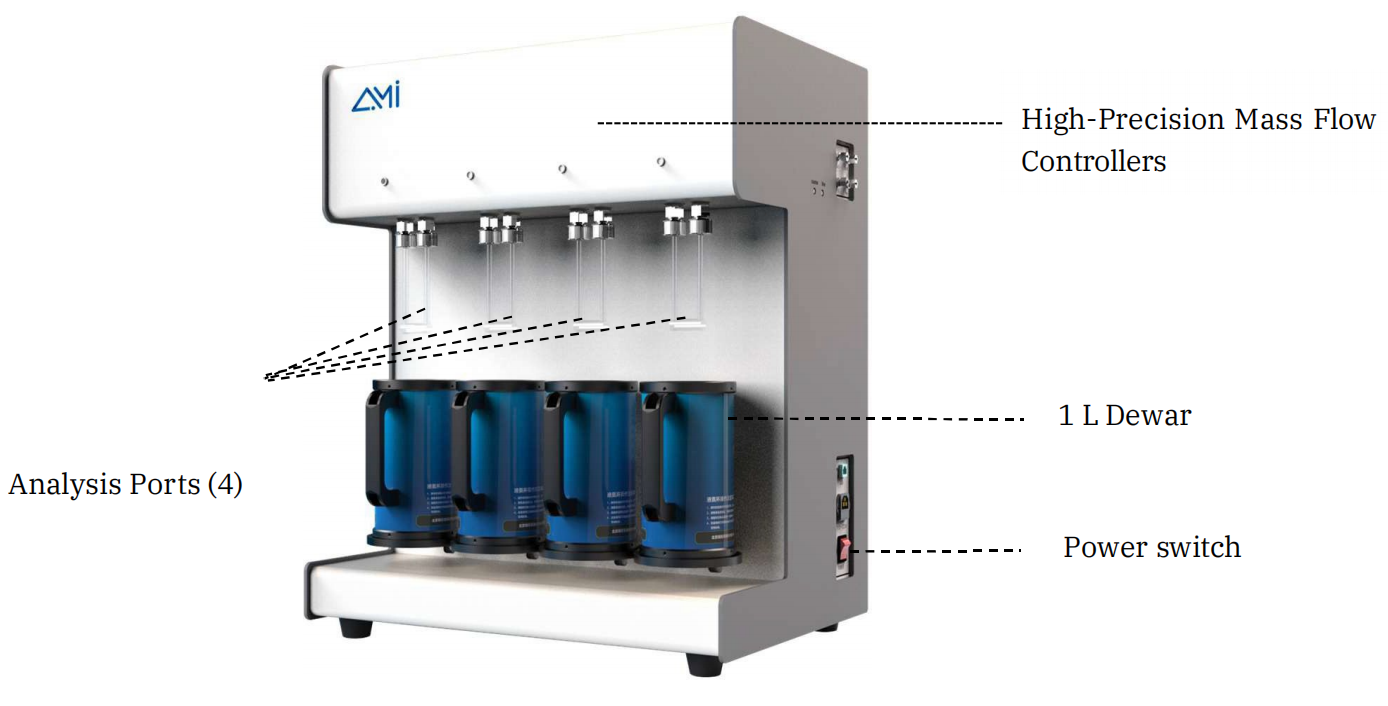

Four Parallel Operating Analysis Stations
Run up to four samples at once with independently controlled stations. Achieve unmatched throughput with consistent test conditions and result repeatability better than ±1.0%.
Anti-Elutriation Technology
A built-in anti-contamination unit prevents sample particles from entering the instrument's internal gas line, ensuring operational reliability and long-term cleanliness.
Optional Sample Preparation Unit
External sample preparation device with four-degas stations can remove adsorbed contaminants from surface and pores of samples with heating in flowing gas/vacuum. Temperature can be set and controlled from ambient to 400 ºC.

Low Form Dewar flask
Long lasting, high volume (1 L) Dewar flasks assure a constant thermal profile along the length of sample tubes during experiment.
Fast, Sensitive Testing

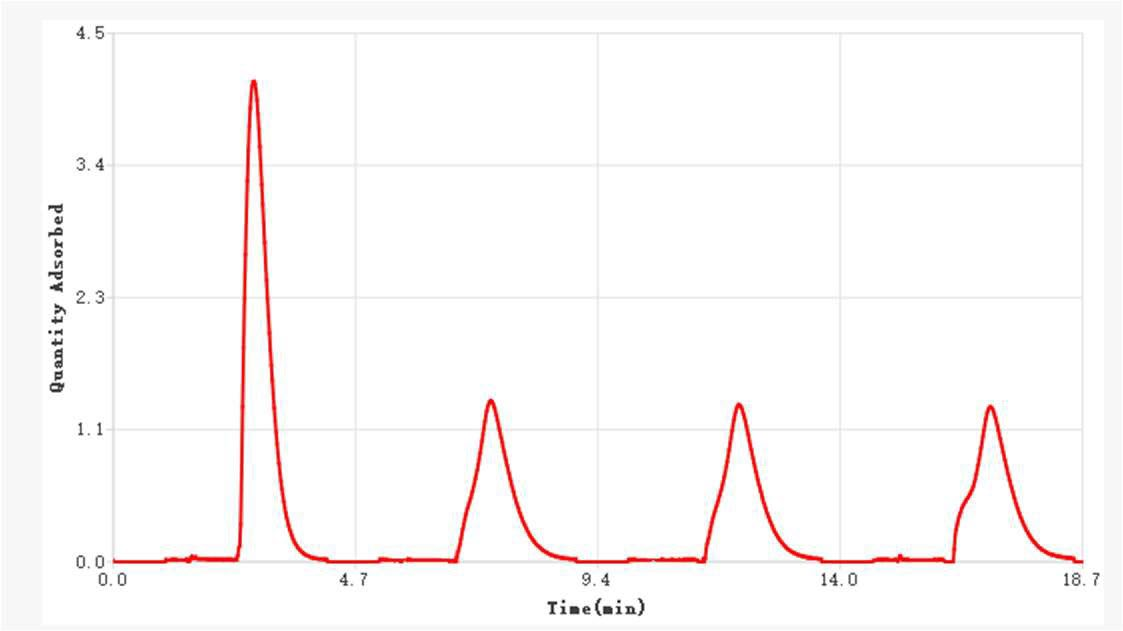

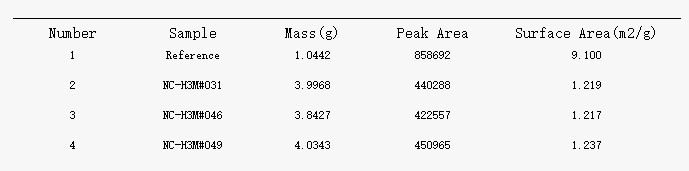

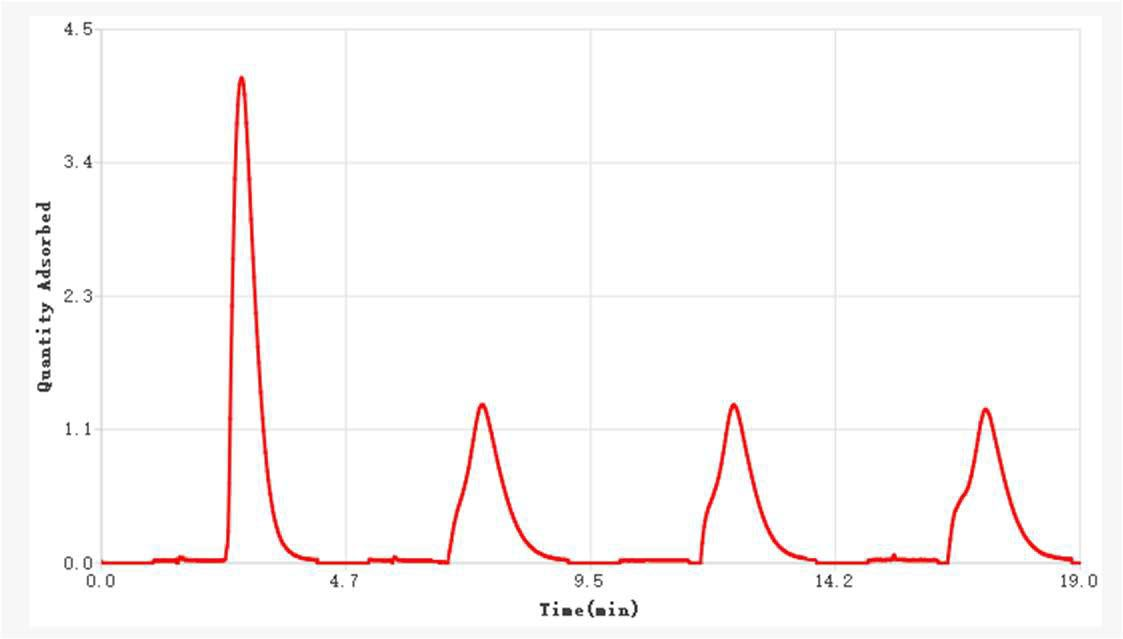

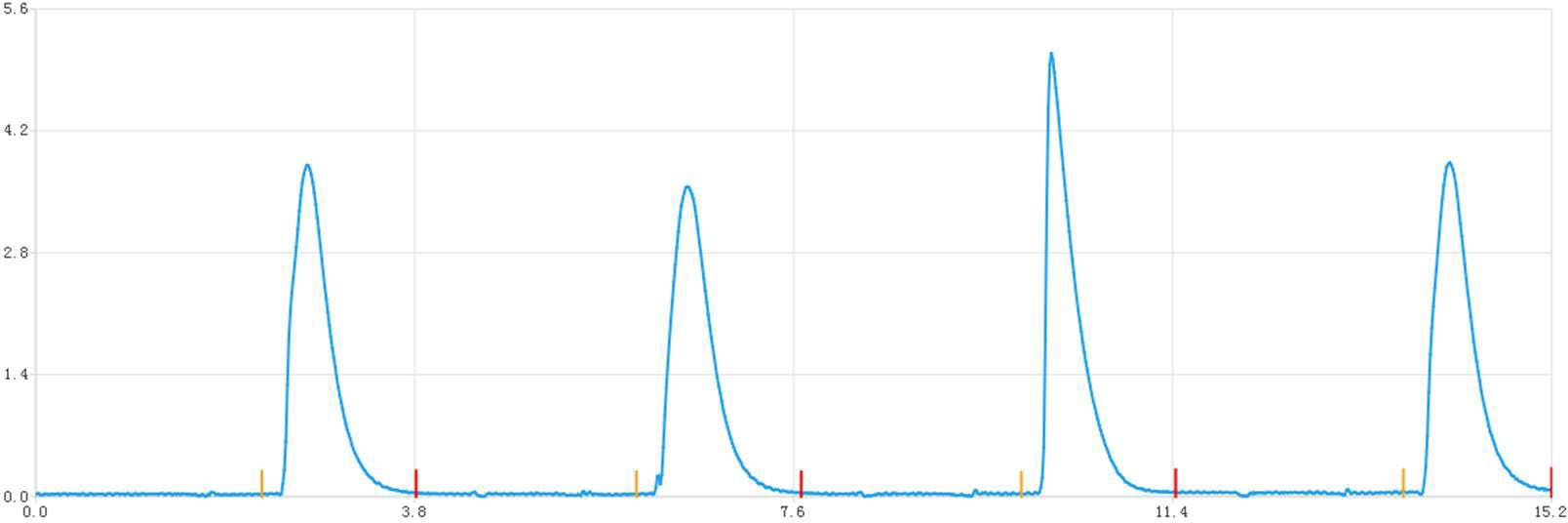

Adsorption peak looks sharp, no trailing phenomenon, the change of nitrogen concentration caused by each sample adsorption is not diluted at all; the sensitivity of the sample test is greatly improved. The test efficiency is greatly improved under the condition of sufficient adsorption and the comparative test of four samples in one time only needs about 15 minutes.

Convenient Operation and User-friendly Design
Operation of AMI-Surface DX Series:

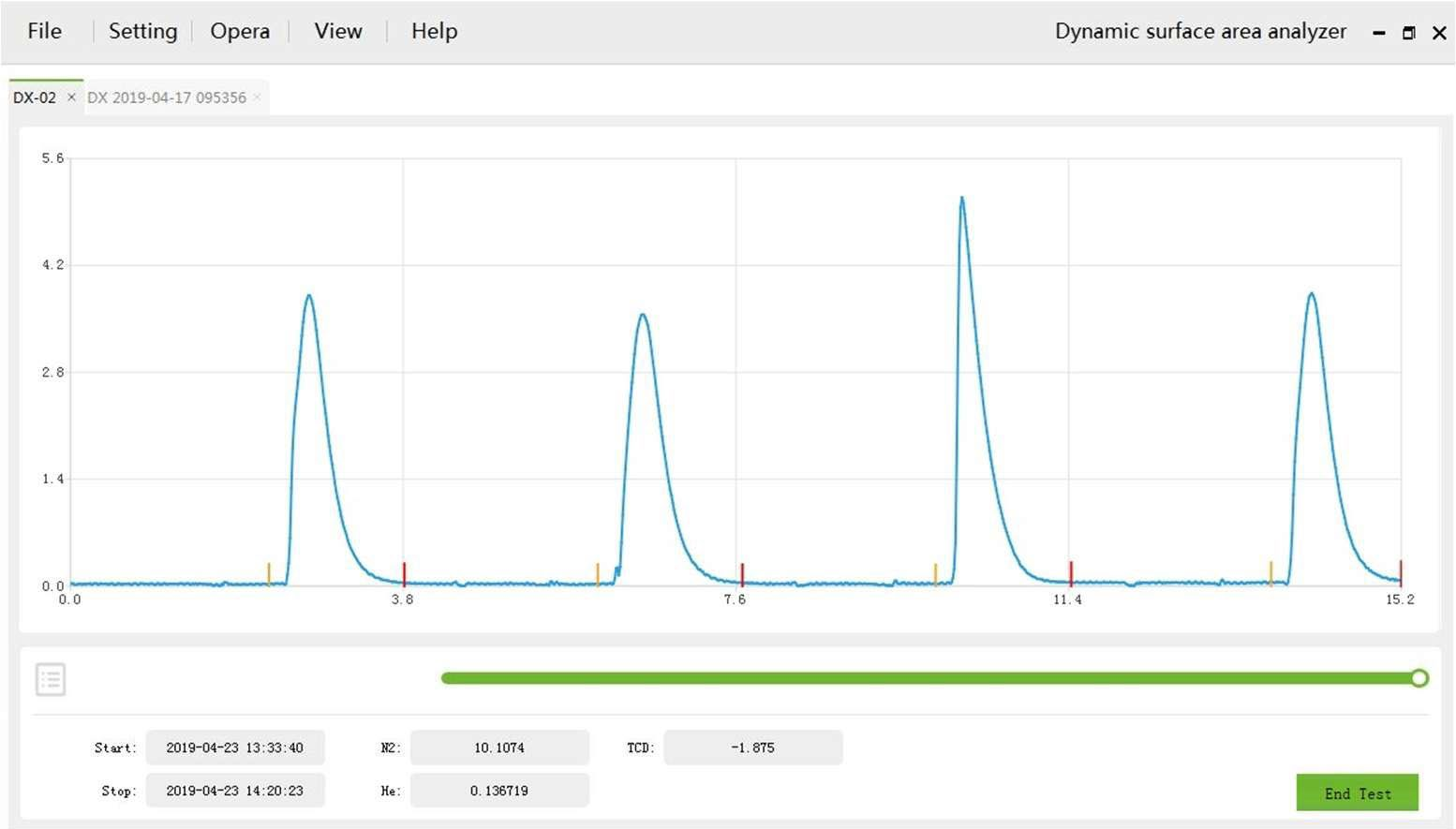

The AMI-Surface DX software provides intuitive operation with real-time visualization of nitrogen and helium flow. During analysis, users can monitor adsorption activity dynamically, offering a clear understanding of test progress and conditions. Ideal for both novice and advanced users, the interface ensures reliable, traceable operation.

Model	Surface DX
Principle	Low temperature nitrogen adsorption, dynamic method

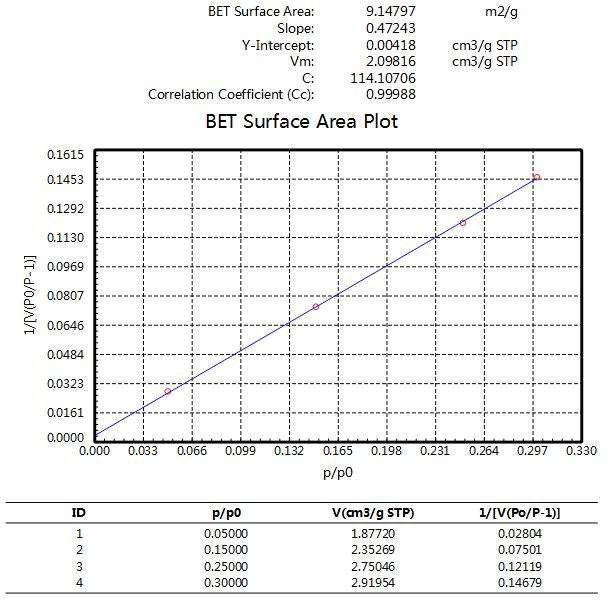

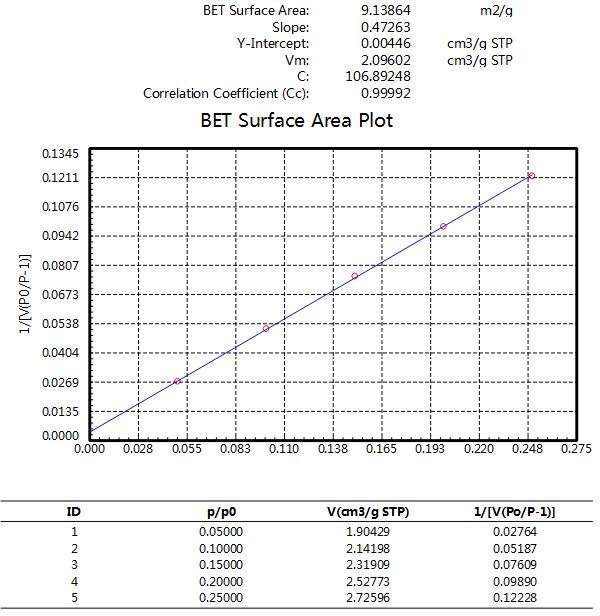

Method	Reference method Single point BET/ Multi-point BET
Efficiency	8 samples/hr
Adsorbate and Carrier Gas	High purity nitrogen (99.999%) High purity helium (99.999%)
Gas Mixing Control	Mass Flow Controllers
Thermal Conductivity Detector	1
Analysis Ports	4 (3 if performing the reference method)
Range of BET Surface Area	For reference method, the range is 0.5 to 100 m²/g For single BET and multipoint BET, 0.5 m²/g to infinity
Repeatability	Typically, better than ±1.0% (carbon black)
Volume and Weight	L 24.0 in (610 mm) × W 18.0 in (460 mm) × H 27.0 in (680 mm), 66 lbs (30 kg)
Power Requirements	110V or 200-240 VAC, 50/60 Hz, maximum power 300 W

Model	Surface DX 400
Principle	Low temperature nitrogen adsorption, dynamic method
Method	Single point BET
Efficiency	28 samples/hr.
Adsorbate and Carrier Gas	3:7 Nitrogen-Helium mixture gas (99.999%)
Thermal Conductivity Detectors	4
Analysis Ports	4
Range of BET Surface Area	0.5 m²/g to infinity
Repeatability	Typically, better than ±1.0% (carbon black)
Cold Trap	✓

Volume and Weight	L 27.5 in (700 mm) × W 16.0 in (410 mm) × H 31.0 in (785 mm), 77 lbs (35 kg)
Power Requirements	110V or 200-240 VAC, 50/60 Hz, maximum power 300 W
